Description

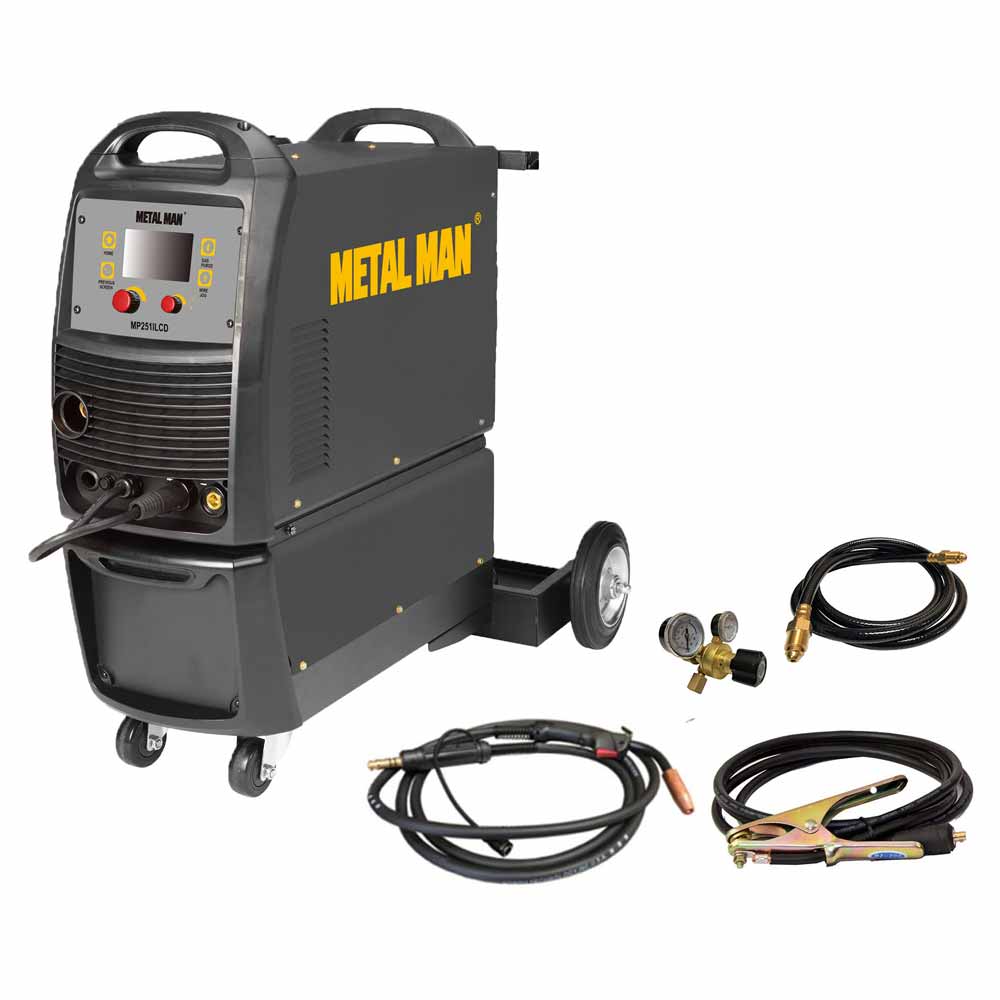

The Metal Man MMP251I is an inverter-powered, wire feed welder for flux core and MIG welding plus a DC stick welder. It features a Synergic LCD control that allows the operator to program parameters by process, wire, material, and gases used and can be saved and recalled for future use. It comes complete with a regulator, gas hose a MIGgun, and a ground cable and clamp. An optional electrode holder (MMEH35-70-10FT)is available for DC stick welding and an optional TIG Torch (ACTT2V) for DC lift arc TIG welding. Directly connect this unit to a 230V NEMA 6-50R receptacle. It is designed to weld materials as thin as 24 gauge all the way up to 1/2″ in a single pass The optional Spool Gun (EZFSG2) is capable of welding aluminum with 4″ spools of aluminum wire. This unit can also perform lift start DC TIG welding on steel and stainless steel materials with TIG Torch(ACTT2V) Argon shielding gas and a TIG filler rod would also be required for TIG welding.
- Welds up to 5/16” in a single pass
- Use 230V input power
- Advanced inverter technology for powerful DC arc performance, and lightweight (31 1/8 lbs)
- Durable cast aluminum drive assembly
- Digital Amperage and Voltage Meters
- Dial Adjustable Voltage, Wire Feed Speed, Amperage Controls
- Dial Adjustable Spot Timer Function
- Easy twist-lock connections & polarity control on the front panel.
- Add on Optional EZFSG for hard to feed MIG wires such as Aluminum
- Add on Optional ACTT2V for scratch start DC TIG welding on steel and stainless steel
- Tweco Style MIG Gun
- Ground Cable & Clamp
- Electrode Holder & Cable
- Regulator & Gas Hose
- Drive Rolls to run .023 to .035 wires
- 14-30 contact tips (3)
- Instruction Manual
PDFs
Metal Man MMP251i omReplacement Parts
- EZFSG2 – Spool gun, 10ft
- ACTT2V – TIG Torch, 17V Style – 10 ft.
- MFCN2PK – Flux Core Nozzle 2 Pack
- MMN2PK – MIG Nozzle 2 Pack
- M250CTA – Replacement Contact Tip Adapter
- 105200274 (RM-14S) – Replacement MIG Gun
- DRK1 – Replacement Drive Roll Kit
- MMIGH1 – Replacement Gas Hose
- MMIGR – Replacement Inert Gas Regulator
- MMGC35-70-10 (105200060) – Replacement Ground Cable & Clamp
- MMEHC35-70-10 (105200087) – Replacement Electrode Holder & Cable
- 14-23-10 – 14-23 Replacement Contact Tips 10 pack
- 14-23-25 – 14-23 Replacement Contact Tips 25 pack
- 14-30-10 – 14-30 Replacement Contact Tips 10 pack
- 14-30-25 – 14-30 Replacement Contact Tips 25 pack
- 14-35-10 – 14-35 Replacement Contact Tips 10 pack
- 14-35-25 – 14-35 Replacement Contact Tips 25 pack
- 1105200114 – Replacement Spool Holder Hardware Kit
